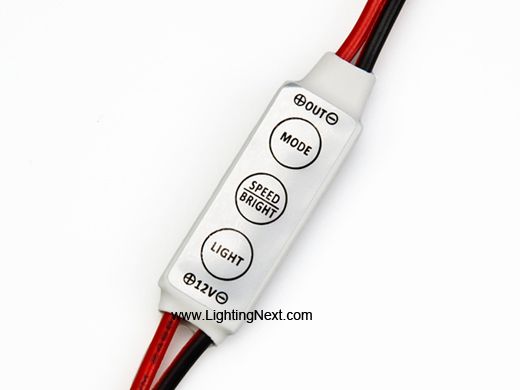

12V6A Universal Single Color Mini PWM LED Dimmer

Be the first to review this product

Availability: In stock

Regular Price: $7.40

Special Price: $4.90

OR

Quick Overview

It can dim any 12VDC LED products from 10%-100% using Pulse Width Modulation (PWM) circuit push button control from stepped intensity adjustment. 5 dynamic flashing modes with adjustable speeds. Maximum load is 5 Amps - holding Speed/Bright button turns LEDs ON/OFF. Attached 4" power input and controller output wire leads.

12V6A Universal Single Color Mini PWM LED Dimmer

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Supply Voltage: DC 12V
Max load current: 5Amps
Output: 1 channel
Working temperature: -20~60°C
Static power consumption: < 1 Watt
Output Power: 60 Watts
Product size: (L)40 x (W)13 x (H)5 mm
Function: Dim LED product from 10~100% using PWM with CPS series Power Supplies

Directions: Press "Light" button to activate static mode. Press "Speed/Bright" button to incrementally dim 8 steps and return to full brightness. "Mode" button enters dynamic flashing patterns. Press "Mode" to cycle through the 5 different patterns. Pressing "Speed/Bright" button will incremently decrease speed 6 steps and return to fastest speed. Hold Speed/Bright button turns LEDs ON/OFF
