16 Channels LT-600 LED Lighting Control System, Supput 65536 Scale Grey Level

Be the first to review this product

Availability: In stock

Regular Price: $613.00

Special Price: $499.00

OR

Quick Overview

The kernel of this controller is VLSI, realize computer's simultaneously play、offline video on demand,automatic timing control、WIFI wireless transmission, And its exterior connect with DMX console to achieve the world's first five in one function. Achieve synchronization /offline seamlessly switch, no need any splitter.Online control doesn't need to add DVI display adapter and send cards,easy to install, matching software's function adapter and send cards,Easy to install,matching software's function perfect. Easy to operate.

16 Channels LT-600 LED Lighting Control System, Supput 65536 Scale Grey Level

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Working voltage DC12V
On-line transmission mode: TCP/IP standard internet protocol
Output signal channels: 16 Channels
Input&output interface: RJ45
Grey level: Max. 65536 scale
Refreshing frequency:60Hz~3000Hz
Loading capability per channel: 512-1920 pixels/channel
Operating system: Windows 2000/2003/XP/Vista/Win7
Off-line storage media SD memory card
The 3th interface: DMX512/1990 protocol
SD card capability: 2GB Max.
Product size: L197×W120×H47(mm)

1. Controller collect 5 kinds major function, which reached by previous multiple controllers.
Ethernet real time computer control via synchronous display.
Offline SD card store request programme. Programming,speed and other functions will be seen with half an eye on the LCD.

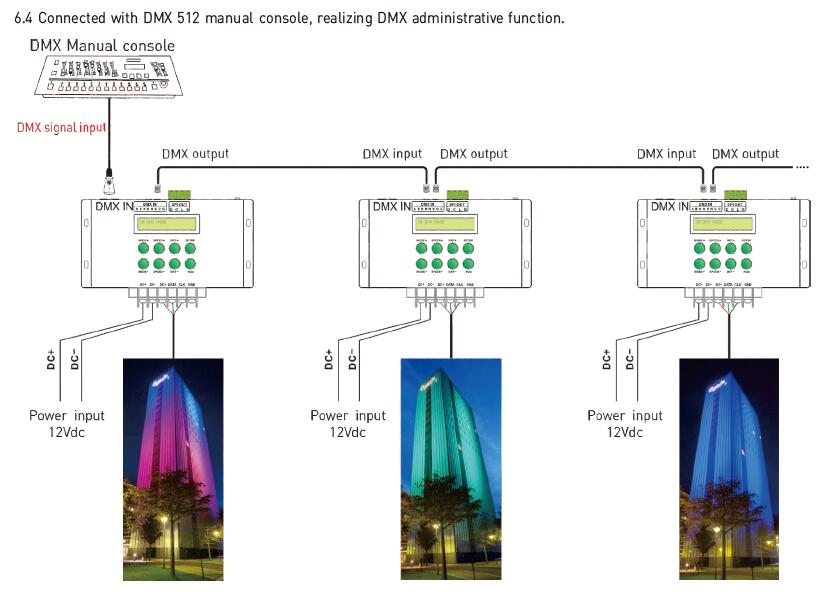

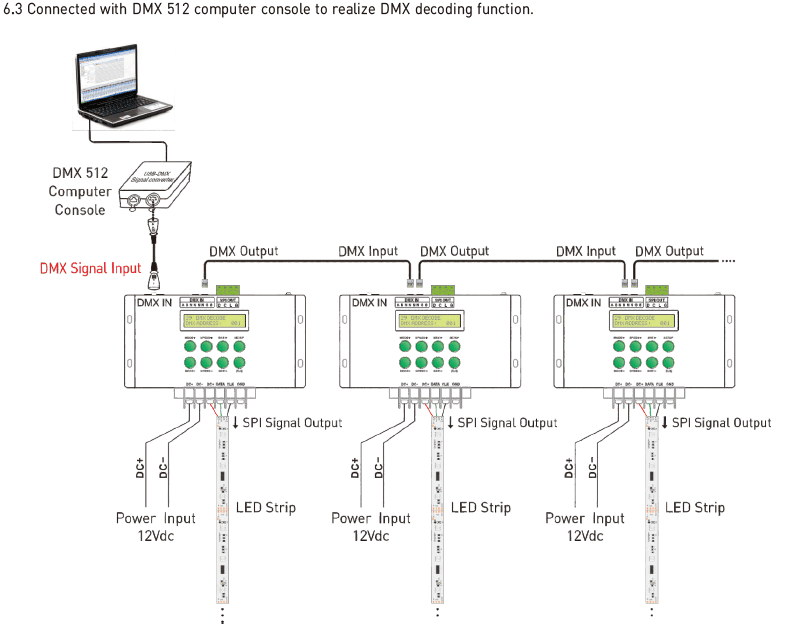

Compatible with DMX protocol,connecting DMX console build lighting control network.
Supporting WiFi wireless transmission, For special occasions, No need wiring.
Supporting timing display any time. Realize display different programs, No matter on working day or weekend.

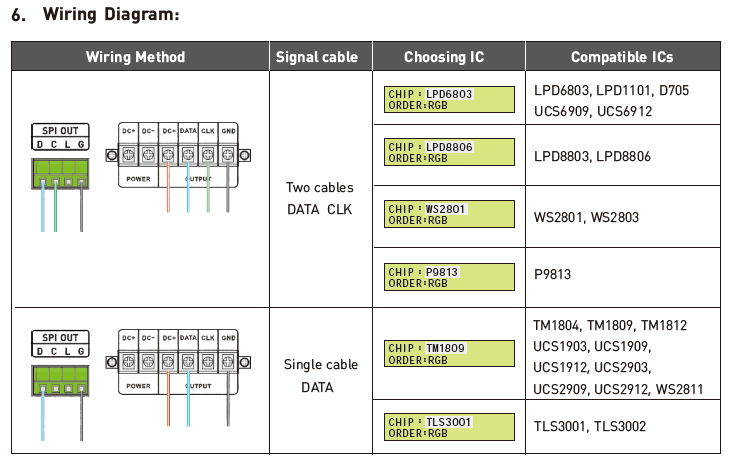

2. Controlling various LED driving chips, the LED lights base on the following IC can be controlled:
74HC595, 6B595, MBI5026, DM134, ZQ9712, LPD6803, LPD6813, LPD1101, D705, UCS6909,UCS6912, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2801, WS2803,WS2811, HL1609, SM16716, SD600, P9813, LPD8803, LPD8806, LPD8809, LPD8812, TLS3001,
TLS3002, TLS3003, TM1803, TM1804, TM1809, TM1812 IC etc.

3. LED lights not only in accordance with the rule of cabling, but also support a variety any cabling's abnormal lighting project.

4. Extra large control capability,16 channels signal output,max. control 30720 full color pixels per LT-600.Support network synchronization of multiple controllers.

5. On-line controlling adopt universal 10/100/1000MBPS network interface, with TCP/IP standard ethernet protocol, accommodate.to wide range. Reliable communication,support WiFi wireless network transmission and real-time simultaneous display. Also can.use internet's remote control to achieve real-time simultaneous display.

6. Adopting advanced image processing technology. Online synchronous play doesn't need to add DVIdisplay adapter and send cards,any desktop and laptop can control it,convenient for project's debuggingand demonstration.

7. Adopting the way of network synchronization,synchronous controlling of multiple can be achieved through network switched.

8. Animation, video files converted generate ultra-fidelity off SD card's read files. ultra-small size, let the time of request programme longer. And the content more affluent;SD card is easy to play the animation, either pull down and then use card reader to update, can also be updated remotely via ethernet.

9. Advanced color grey level processing technology,consistent with human eye’s visual sensory,display effect will more vivid, higher brightness, richercolor. Effectively remove the tooth angle produced by the floating line in video. Show the smooth and natural image.

10. Perfect software function, simple to operate, own video display,support most media format. User can compile various pictures, texts. Cartoon、 video as programme that will be present. Can input any text display in the process of play. Support viewfinder read the display on screen directly. Breakthroughing the restrictions to code stream format、play Random format file. Realize split screen display,can divide screen at will. Switching chinese and english version freely.
