TLS3001 WS2801 LED DMX SPI Decoder, Compatible with TLS3001, TLS3002 IC

Be the first to review this product

Availability: In stock

Regular Price: $67.00

Special Price $54.00

OR

Quick Overview

Input voltage: DC5V~DC24V
Input signal: DMX512
Output signal: compatible with the driving IC such as TLS3001, TLS3002
Decoder channels: 512 DMX CH/unit
Grey Scale: 256 levels/CH(8bit/CH)
DMX512 socket: XLR-3, Green terminal
Dimming range: 0~100%
working temperature: -30℃~65℃
Dimension: L125×W52×H40mm
Weight (G.W): 300g

TLS3001 WS2801 LED DMX SPI Decoder, Compatible with TLS3001, TLS3002 IC

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

This decoder can convert universal DMX512 signal into SPI signal, suitable for LED lights based on TLS3001, TLS3002 driving IC.

How to set DMX address via dip switch:

When FUN=OFF, Decoder is DMX controlling mode, When FUN=ON, Decoder is self-test mode

1. Set DMX512 original address

1.This decoder adopts Dip switch to set the address. The Dip switches from 1 to 9 are a kind of binary value coding switches which used for setting DMX512 initial address code, The 1st is the lowest one, The 9th is the highest one. Can set 511 addresses totally.
2.DMX512 initial address is the total amount of the Dip switch 1-9, down dip switch to “ON” position, User can get its place value, Up dip switch to “OFF” position, Its place value is 0.

2. Testing function:

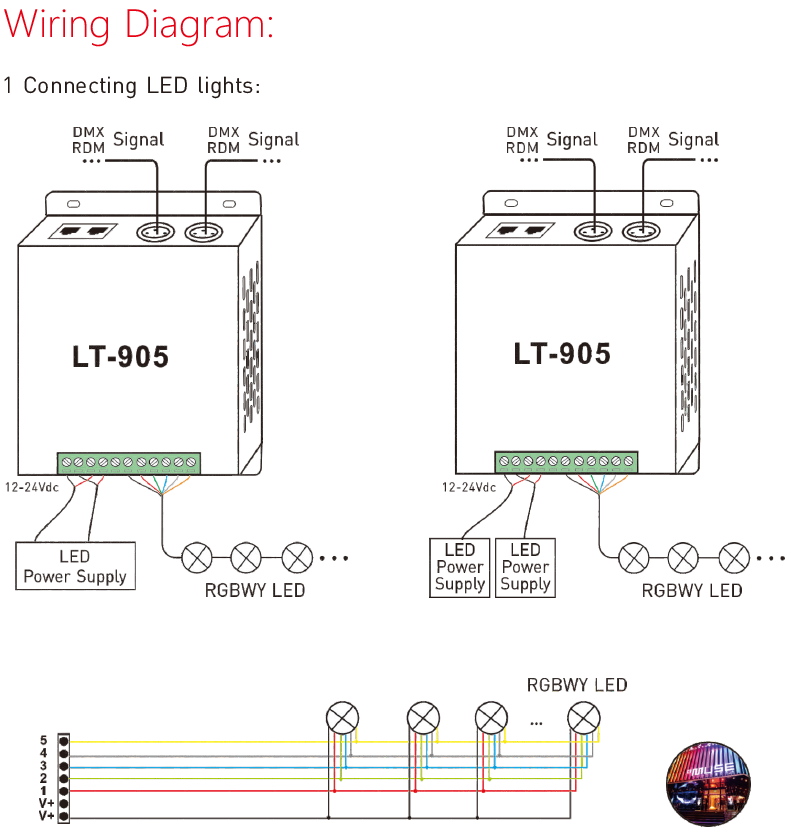

LED Lights conjunction diagram:

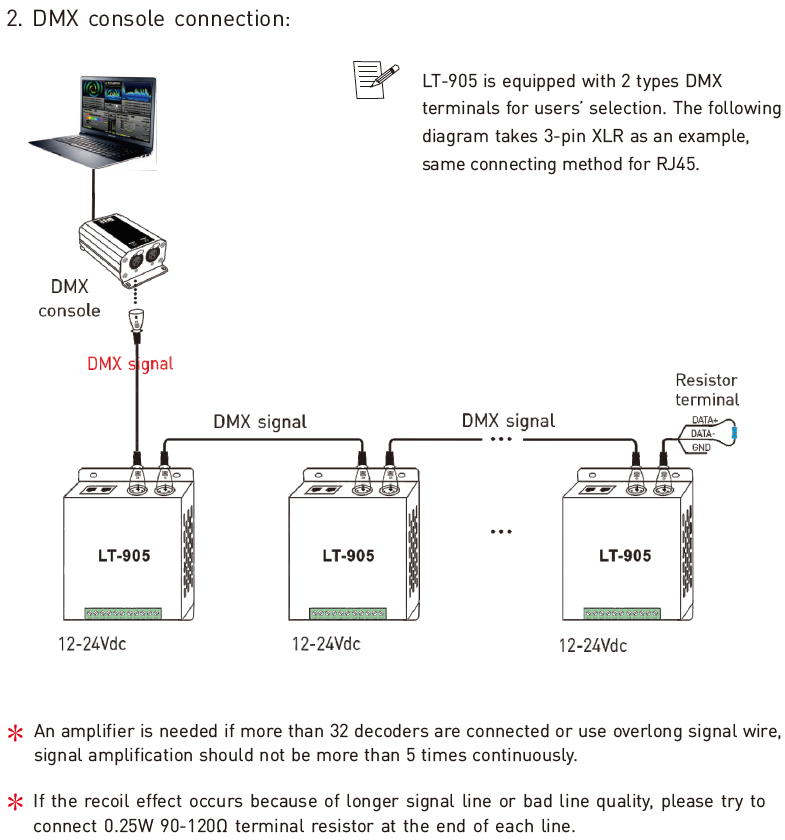

Note: When use DMX512 protocol, In order to ensure the accuracy and stability on signal transmission. Need to weld a minitype metal film terminal resistor with 90~120Ω 1/4 W between 2 and 3 base (signal positive and signal negative) of each channel DMX signal cable’s most end according to DMX512 protocol specification. The volume of the impedance should refer to the manual of DMX dimming console you are using.
