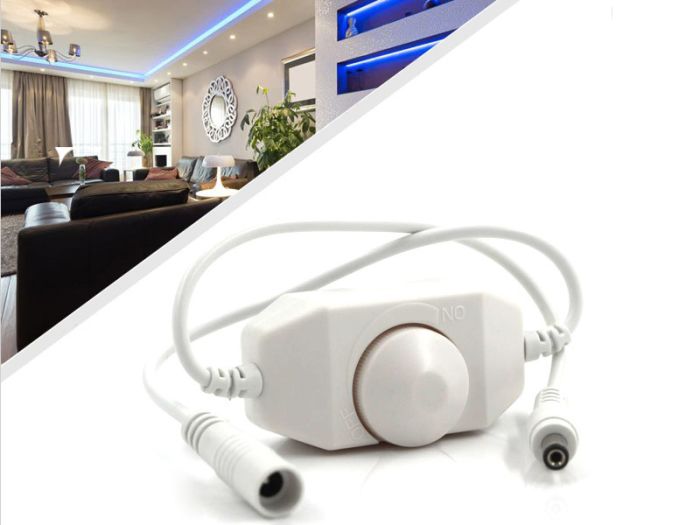

12 Volt DC In-line Wired Single Color LED Dimmer

Special Price $8.50 Regular Price $13.00
In stock
  • Buy 5 for $7.35 each and save 14%
  • Buy 10 for $6.75 each and save 21%
  • Buy 30 for $6.35 each and save 25%

Amps:    2 Amps
Amps Per Channel:    2 Amps/CH
Channels:    1 Channel
Connection Type:    CPS Female, CPS Male
Dim Control:    Knob Control
Input Voltage:    12 VDC
Output Voltage DC:    12 VDC
Remote Control:    In-line Wired
Standards And Certifications:    RoHS Compliant
Max load current: 2 Amps
Output: 1 Channel
Static power consumption: < 1 Watt
Output Power: 24 Watts
Function: Dim LED product from 0~100% using PWM with CPS series Power Supplies

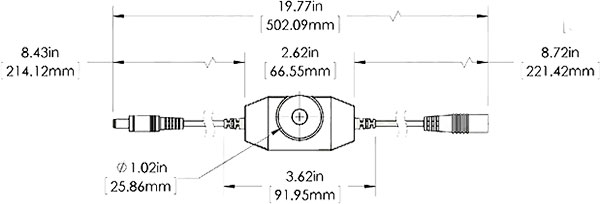

Product size: (L)61x(W)33x(H)32mm
Net Weight: 30g
Working temperature: -20~60°C
Package Weight: 2.1oz (0.06kg)
Package Dimensions: 4.05" (10cm) x 2.08" (5cm) x 2.08" (5cm)

Universal single color LED dimmer can dim any 12VDC LED products from 0 to 100% using Pulse Width Modulation (PWM) circuit knob control. Has male and female 5.5mm barrel power connector for connecting in-line with our CPS series power supplies. Maximum load is 2 amps. Available with black or white finish.
