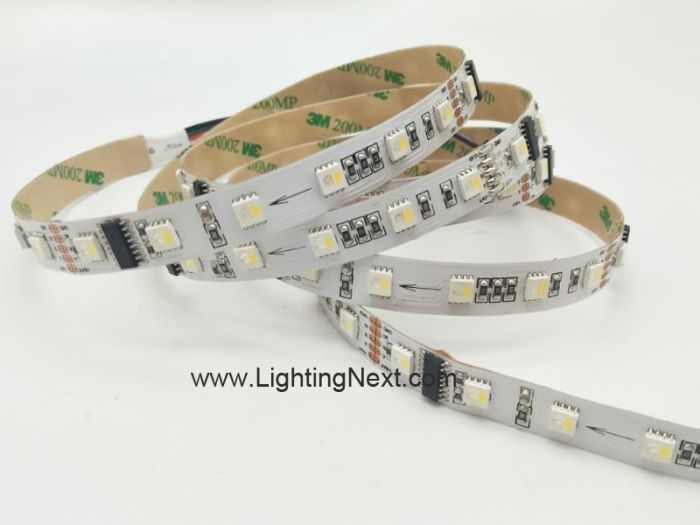

60/m 4-in-1 RGBW DMX 512 LED Strip Light, 5m, 24V
Input voltage: DC24V
LED Type: Grade A high quality 4 in 1 SMD 5050 LED
Available Color: RGBWW (2700-3200K Warm White), RGBW(5500-6500K White)
Power consumption: 19.2W/m max
IC Qty: 10 pcs DMX512 IC per meter
LED Qty: 60 pcs 5050 SMD LED per meter
PCB Size: L5000*W15(mm)
View angle: 120°
Channels / Pixels: 4 Channels per Pixel
Control Method: DMX512 Control
Protection rate: Non-waterproof, silicone coating IP65, silicone tube IP67
FPCB color: white
The DMX512 IC has the max485 inside,which following the principle of dmx512 protocol. The strip comes with fIve wires, +24V, PI address writing wire, A(DA+), B(DA-), GND, respectively, and can be controlled directly via DMX controller without using decoders. The red, green, blue and white (3000K/6000K) diodes can be mixed to potentially produce over a billion color rendering options.
