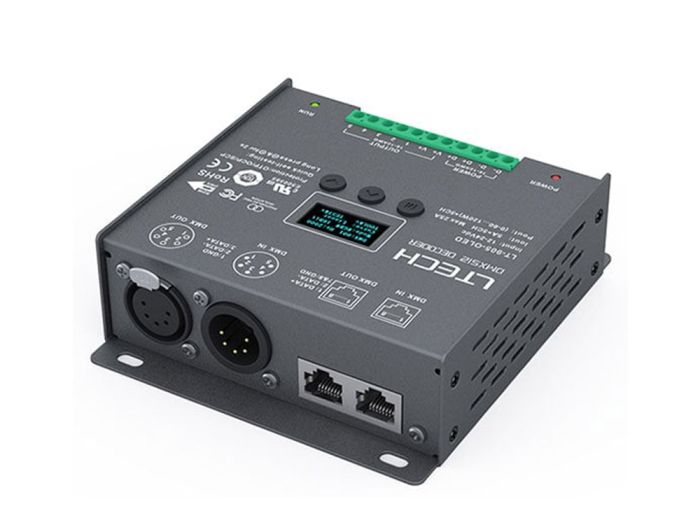

LT-905-OLED DC12V/24V,5CH,600W,CV UL-Listed RGBCCT DMX512/RDM LED Decoder
- Buy 5 for $99.50 each and save 9%
- Buy 10 for $95.50 each and save 13%
- Buy 30 for $90.50 each and save 17%
Product Introduction:
1. Designed for Hi-power multiple channels application, 5 channels output, and Max. 5A current per channel, up to 600W output power.
2. Easy operation with OLED screen and the touch buttons.
3. 5 kinds of mode optional: single color, color temperature, RGB, RGBW, RGBWY.
4. Support 2 kinds of DMX ports with signal isolation function: 5-pin XLR, RJ45.
5. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
6. With the photoelectric isolation function.
7. With shortcut protection and overload protection, as well as warning function when fault.
8. With fast self-testing function.
9. 16bit / 8bit resolution optional.
10. Multiple dimming curves (0.1~9.9) optional.
Input signal: DMX512/RDM
Input voltage: DC12V～DC24V
Max load current: 5A ×5CH Max. 25A
Max output power: (0~60W...120W) x5CH Max.600W
DMX512 socket: XLR-5, RJ45
Control mode: DIM/CT/RGB/RGBW/RGBWY
DIM Curve: 0.1～9.9
Grayscale level: 8bit(256 levels)/16bit(65536 levels)
Photoelectric Isolation: Yes
Working temperature: -30℃～65℃
Dimension: L122×W110×H37(mm)
Package Size: L125×W115×H39(mm)
Weight (G.W): 450g
-
