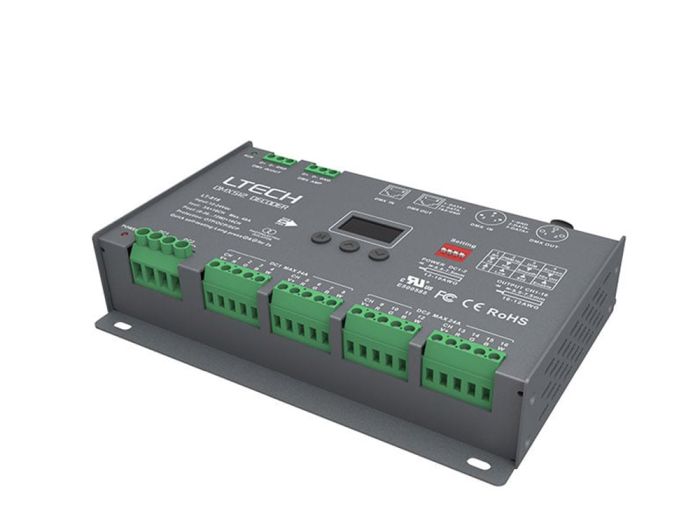

LT-916 16CH LED CV DMX UL-Listed LED Decoder
- Buy 5 for $145.50 each and save 6%
- Buy 10 for $135.50 each and save 13%
- Buy 30 for $129.50 each and save 17%
1. Designed for Hi-power multiple channels application, 16 channels output, and up to 1152W output power.

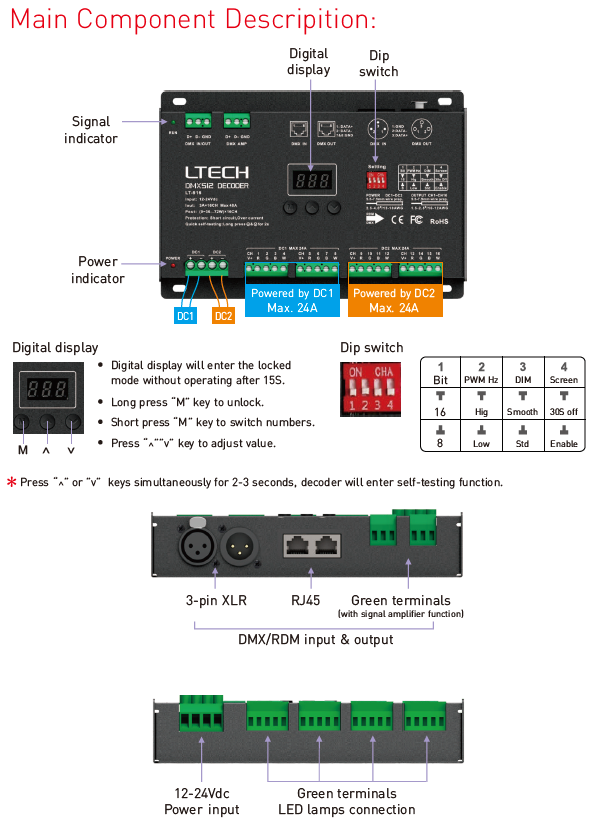

2. Easy operation with digital display and the touch buttons.

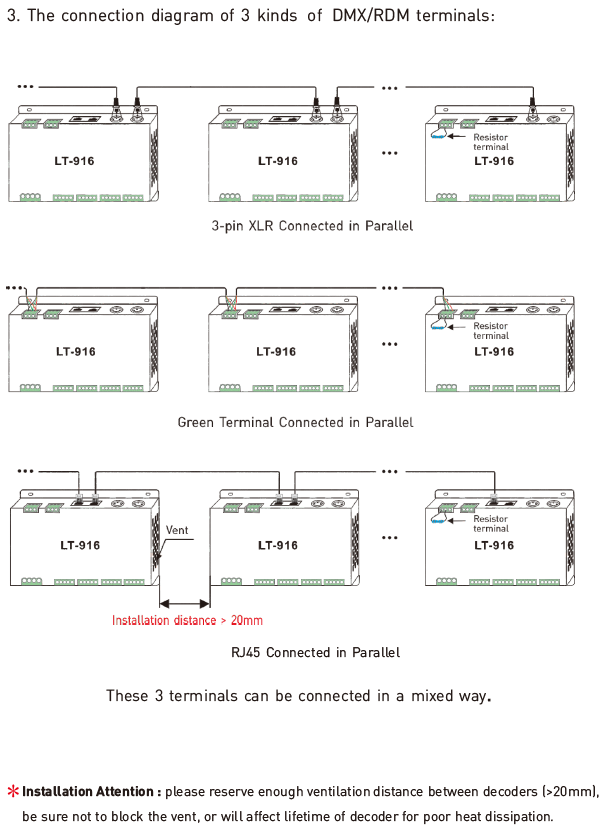

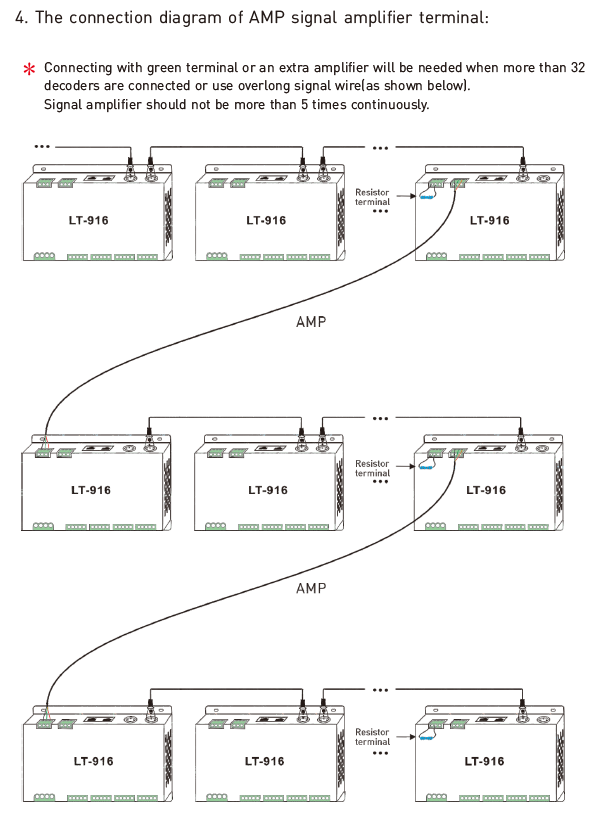

3. Support 3 kinds of DMX ports: 3-pin XLR, RJ45 and green terminal (with signal amplifier function).
4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
5. With short circuit protection and over current protection, as well as warning function when fault.
6. With fast self-testing function.
7. The high/low PWM frequency for optional.
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
Technical Specs:
Model: LT-916

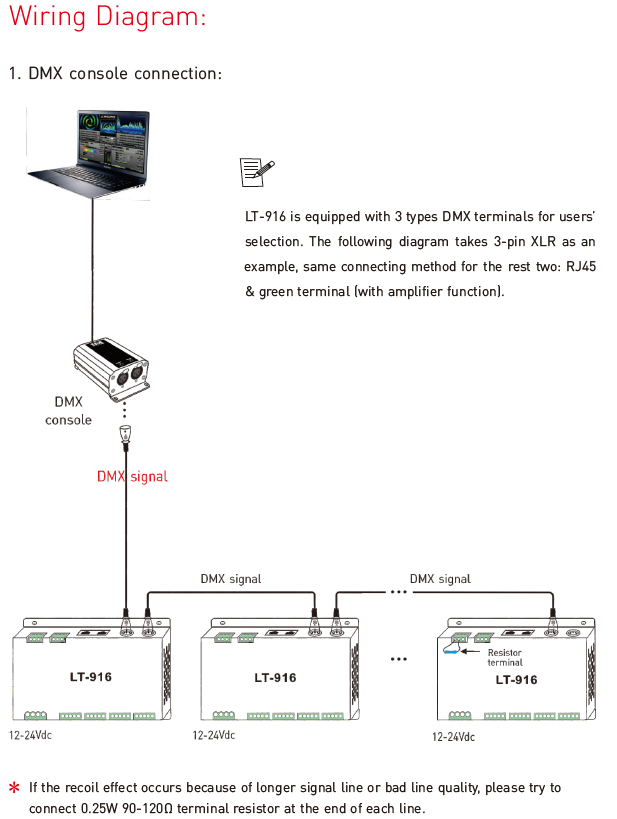

Input Signal: DMX512/RDM 3-pin XLR, RJ45, Green terminal
Input Voltage: 12~24Vdc
Current Load : 3A × 16CH Max 48A
Output Power : (0~36W...72W) × 16CH Max. 1152W
Grey Level : 8bit (256 levels) / 16bit (65536 levels)
Protection: Short circuit / Overcurrent
Working Temperature: -30℃~65℃
Dimensions: L180×W122×H39mm
Package Size: L193×W127×H41mm
Weight (G.W.) : 730g
-
