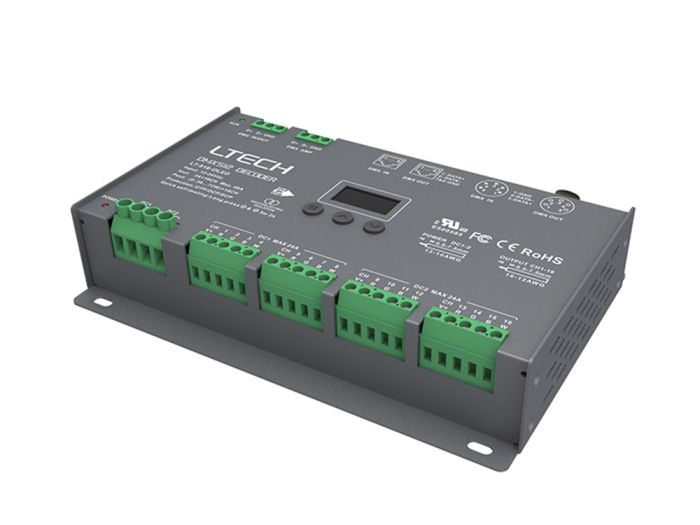

LT-916-OLED DC12~24V 16CH CV DMX UL-Listed LED Decoder
- Buy 5 for $165.50 each and save 6%
- Buy 10 for $155.50 each and save 12%
- Buy 30 for $146.50 each and save 17%
Product Introduction:
1. Designed for Hi-power multiple channels application, 16 channels output, and
Max. 3A current per channel, up to 1152W output power.
2. Easy operation with OLED screen and touch buttons.
3. 4 kinds of mode optional: single color, color temperature, RGB, RGBW.
4. Support 3 kinds of DMX ports with signal isolation function: 5-pin XLR, RJ45 and
green terminal (with signal amplifier function).
5. WithRDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
6. With the photoelectric isolation function.
7. With short circuit protection and over current protection, as well as warning function when fault.
8. With fast self-testing function.
9. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
10. Multiple dimming curves (0.1~9.9) optional.
Technical Specs:
Model: LT-916-OLED
Input Signal: DMX512/RDM
Input Voltage: 12~24Vdc
Current Load : 3A × 16CH Max 48A
Output Power : (0~36W...72W) × 16CH Max. 1152W
DMX Interface: 5-pin XLR, RJ45, Green terminal
Control Mode : Dimming/CT/RGB/RGBW
Dimming Curve: 0.1~9.9
Grey Level : 8bit (256 levels) / 16bit (65536 levels)
Photoelectric Isolation: Yes
Protection: Short circuit / Overcurrent
Working Temperature: -30℃~65℃
Dimensions: L180×W122×H39mm
