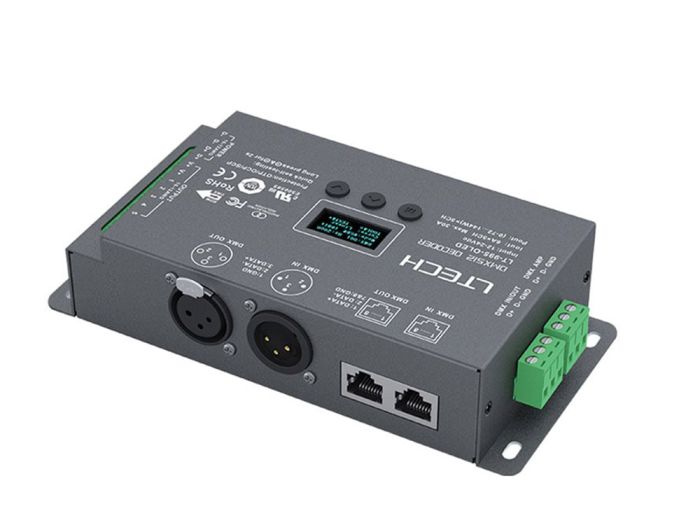

LT-995-OLED DC12V～DC24V,720W,5CH CV DMX Decoder
- Buy 5 for $105.50 each and save 5%
- Buy 10 for $96.50 each and save 13%
- Buy 30 for $91.50 each and save 17%
UL Certificated DMX Decoder LT-995-OLED for single color, CCT, RGB, RGBW, or RGBCCT led light strips.
1. Designed for Hi-power multiple channels application, 5 channels output, and Max. 6A current per channel, up to 720W output power.
2. Easy operation with OLED screen and the touch buttons.

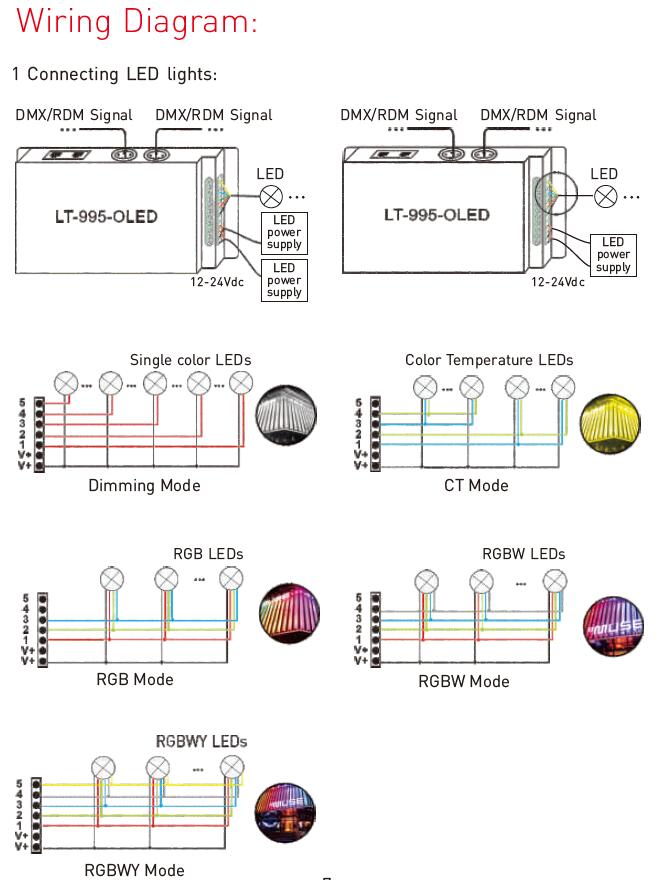

3. 5 kinds of mode optional: single color, color temperature, RGB, RGBW, RGBWY.

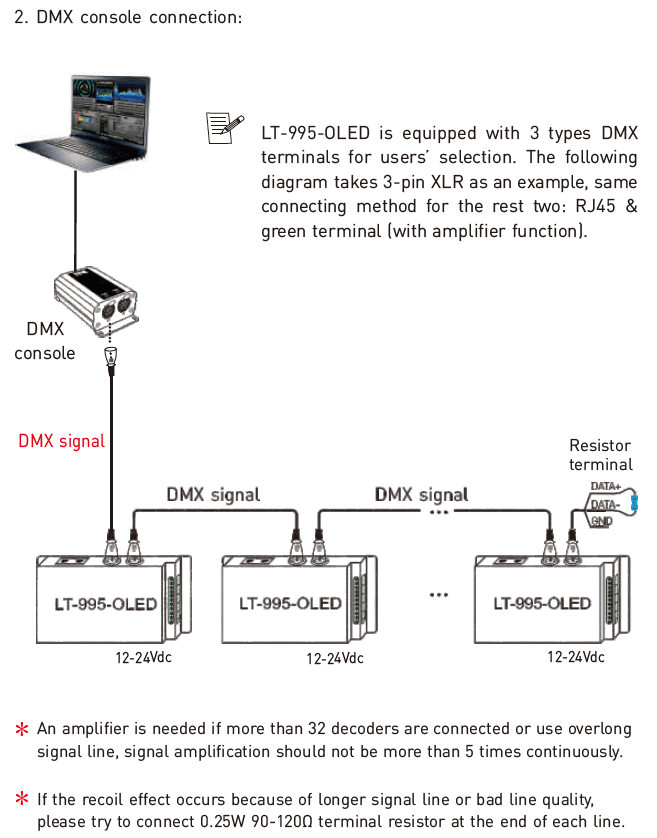

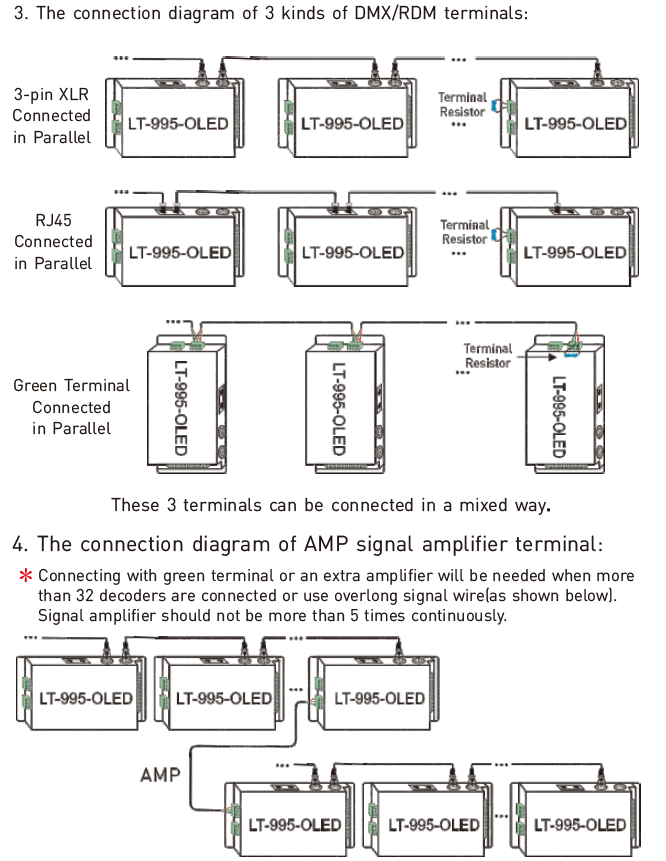

4. Support 3 kinds of DMX ports with signal isolation function: 3-pin XLR, RJ45 and green terminal (with signal amplifier function).

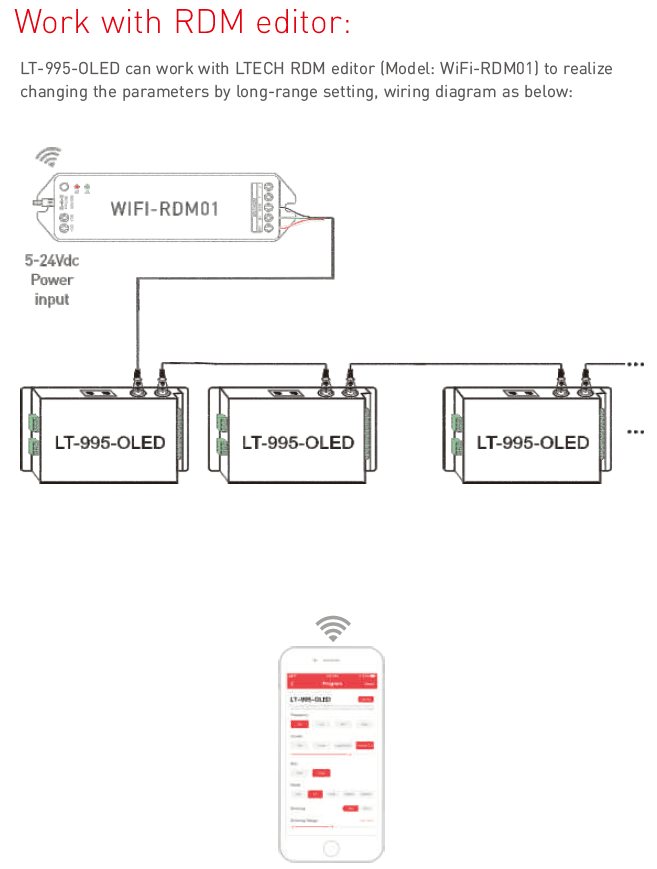

5. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
6. With a photoelectric isolation function.
7. With shortcut protection and overload protection, as well as warning function when fault.
8. With fast self-testing function.
9. 16bit / 8bit resolution optional.
10. Multiple dimming curves (0.1~9.9) optional.
Technical Specs:
Input signal: DMX512/RDM
Input voltage: DC12V～DC24V
Max load current: 6A ×5CH Max. 30A
Max output power: (0~72W...144W) x5CH Max.720W
DMX512 socket: XLR-3, RJ45, Green terminal
Control mode: DIM/CT/RGB/RGBW/RGBWY
DIM Curve: 0.1～9.9
Grayscale level: 8bit(256 levels)/16bit(65536 levels)
Photoelectric Isolation: Yes
Working temperature: -30℃～65℃
Dimension: L169×W80×H39(mm)
Package Size: L182×W91×H41(mm)
Weight (G.W): 600g
-
