M4-C DC12V to 48V 16 Bits 8 Bits Terminal Wired DMX RDM 4CH LED Decoder Max 24A Total

The M4-C (D4A) DMX RDM decoder is hardwired with terminal blocks, offers a variety of PWM dimming frequencies (300Hz, 600Hz, 1200Hz, 1500Hz, 1800Hz, 2400Hz, 3600Hz, 7200Hz, 10800Hz, 14400Hz, 18000Hz, default is 1800Hz), and 16 bits (65536 levels) 8 bits (256 levels) grayscale options to suit your LED lighting needs.

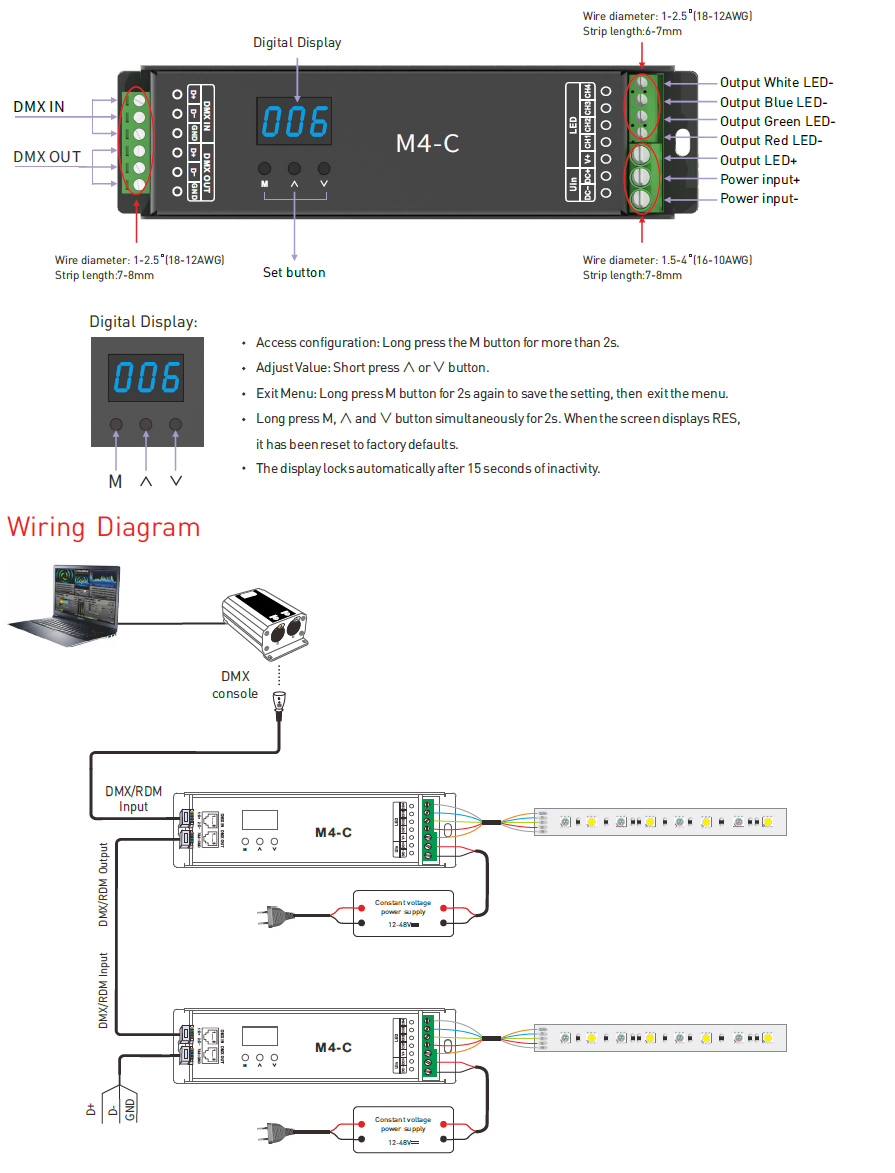

Set address via the LCD screen and buttons.

DMX mode and customized mode can be switched.

Two dimming modes, standard dimming and smooth dimming.

Browse and set parameters, change DMX address, and recognize lighting devices via a RDM master;

Provide 10 lighting effects, 8 levels of dynamic mode speed, 255 brightness levels;

Set screen timeout, LCD screen always on, and screen turning off after 30s of inactivity;

Short circuit, over-temperature, over-current protection and auto recovery.

Product Specifications

Product Name:     Ltech 16Bit 8Bit Terminal Wired DMX RDM 4CH LED Decoder
Input Signal: DMX512, RDM
Input Voltage: DC12-48V
Output Current: Max 8A/CH, Max 24A total
Output Power: Max 384W/CH, Max 1152W (4CH)
Dimming Range: 0-100%
DMX Signal Port: Terminal
Working Temperature: -30~+55°C
Protection: Short circuit, over temperature, over current protection, auto recovery
Gross weight(G.W): 330g
Dimensions: 175×46×30mm(L×W×H)
