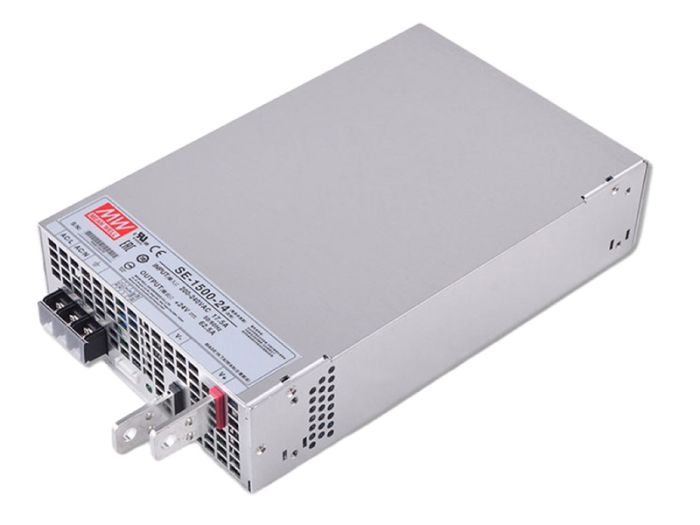

Mean Well LED Switching Power Supply - SE Series 1500W Enclosed Power Supply - 24V DC
Connection Type: Screw Terminals
Dimming Control: None
Dimmable: No
Input Frequency Range: 47 ~ 63 Hz
Input Voltage: 180 ~ 264 VAC
Input Voltage DC: 254 ~ 370 VDC
IP Rating: Non-Waterproof
Output Channels: 1
Output Rated Current: 62500mA
Output Voltage DC: 24 VDC
Built-in PFC Function: No
Power Supply Type: Indoor
Standards And Certifications: RoHS Compliant, UL Recognized
UL Standard Number: UL 60950-1
Volts: 24 VDC
Wattage: 1500 Watts
Package Weight: 13oz (0.37kg)
Package Dimensions: 5.55" (14cm) x 2.72" (7cm) x 2.72" (7cm)
Input Voltages: 180 ~ 264 VAC or 254 ~ 370 VDC
High power models with safety certificate
Non-PFC, complete protections
Protections: Short circuit / Overload / Over voltage / Over temperature
100% full load burn-in test
LED indicator for power on
Built-in DC fan
Low cost, high reliability
2 years warranty
