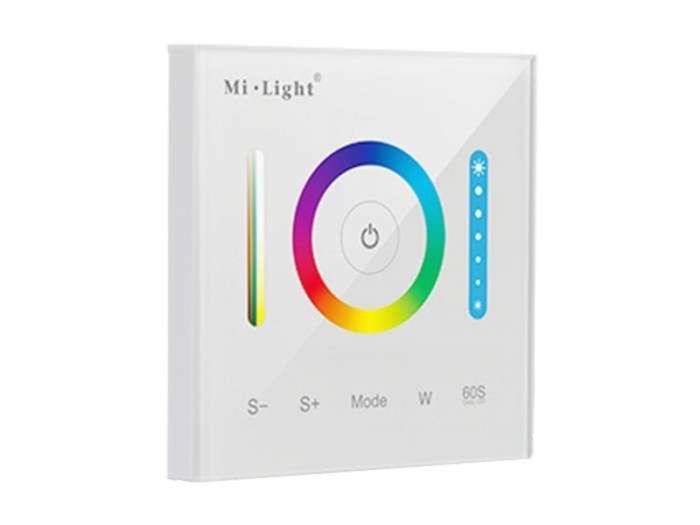

Mi Light-P3 LED wall controller 5-channel RGB + CCT PWM 5x5A 12-24VDC
- Buy 5 for $25.55 each and save 13%
- Buy 10 for $23.55 each and save 20%
- Buy 30 for $22.55 each and save 24%
Color mixing: RGBCCT
Protection class: IP20
Input voltage: NV 12-24V DC
Number of channels: > 5
Power per channel: 5A CV
Connections: Screw terminal
Functionality: PWM signal, touch control
Type: Constant voltage CV, wall controller
Special functions: internal programs, memory

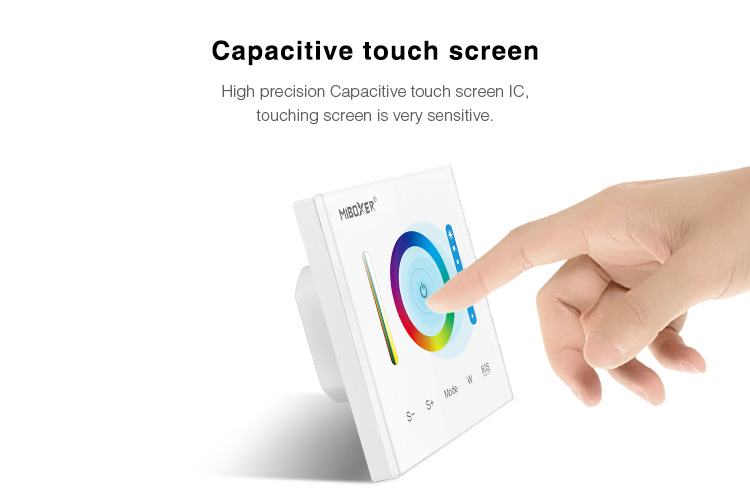

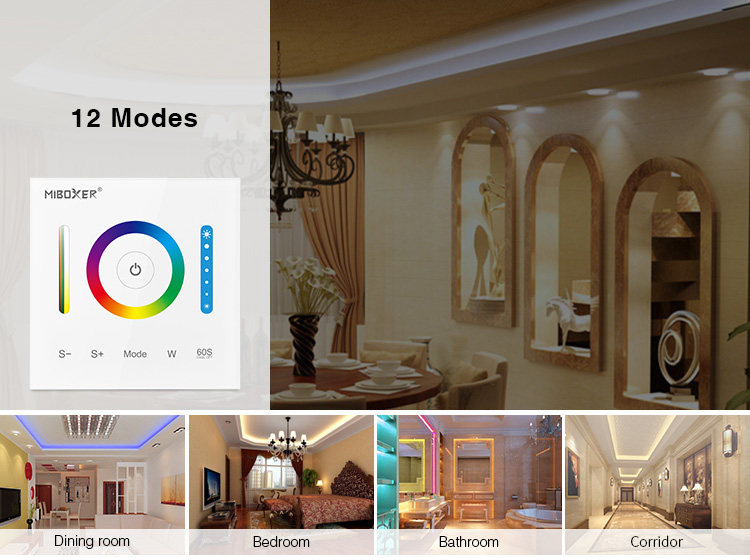

The Mi Light-P3 wall panel is a 5-channel (RGB + CCT) LED wall controller, with a power of max.5A per channel (total max.15A) on which LED strips or other CV LED lights with a common plus (+) pole are connected can be connected. The Mi Light-P3 can control 1-5 channel lights / stripes. The color of the individual channels and the color / white ratio (saturation) can be controlled via touch-sensitive sliders and the brightness can be dimmed using the dim slider. The Mi Light-P3 also has 12 modes with 8 color programs. The scratch-resistant glass surface of the controller ensures a classy finish and a long service life.
