NeoPixel Ring 24 LEDs - Smart SK6812 RGB 5050 LED with Integrated Drivers

Special Price $14.95 Regular Price $30.00
In stock
SKU
LN00414
  • Buy 5 for $13.15 each and save 12%
  • Buy 10 for $11.85 each and save 21%
  • Buy 30 for $11.25 each and save 25%
Beam Angle: 120 degree Type: NeoPixel Ring Operating Voltage Range: 5 VDC IP Rating: Non-Weatherproof LED Lifetime: 30000 Hours LED quantity: 24 LEDs Ambient Temperature: -20ºc - 60ºc PCB Width: 8mm (0.31in) Outer diameter: 92mm Inner diameter: 76mm Standards And Certifications: CE, RoHS Compliant LED Type: 5050 SMD Thickness: 3mm LED Color: RGB (3000K or 6000K) Connection Type: Pigtail

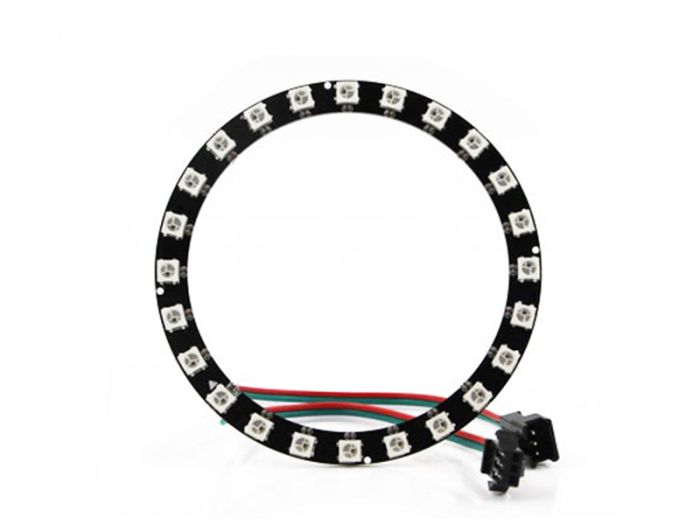

24 ultra bright smart LED NeoPixels are arranged in a circle with 92mm (3.61") outer diameter. The rings are 'chainable' - connect the output pin of one to the input pin of another. Use only one microcontroller pin to control as many as you can chain together! Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with 5VDC.
