NeoPixel Ring 32 LEDs - Smart SK6812 RGB 5050 LED with Integrated Drivers
- Buy 5 for $17.55 each and save 12%
- Buy 10 for $15.75 each and save 21%
- Buy 30 for $14.95 each and save 25%
Beam Angle: 120 degree
Type: NeoPixel Ring
Operating Voltage Range: 5 VDC
IP Rating: Non-Weatherproof
LED Lifetime: 30000 Hours
LED quantity: 32 LEDs
Ambient Temperature: -20ºc - 60ºc
PCB Width: 8mm (0.31in)

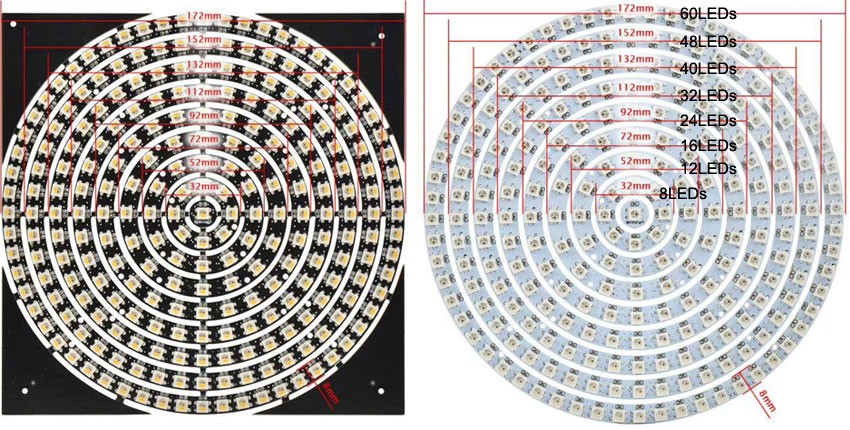

Outer diameter: 112mm
Inner diameter: 96mm
Standards And Certifications: CE, RoHS Compliant
LED Type: 5050 SMD
Thickness: 3mm
LED Color: RGB(3000K or 6000K)
Connection Type: Pigtail

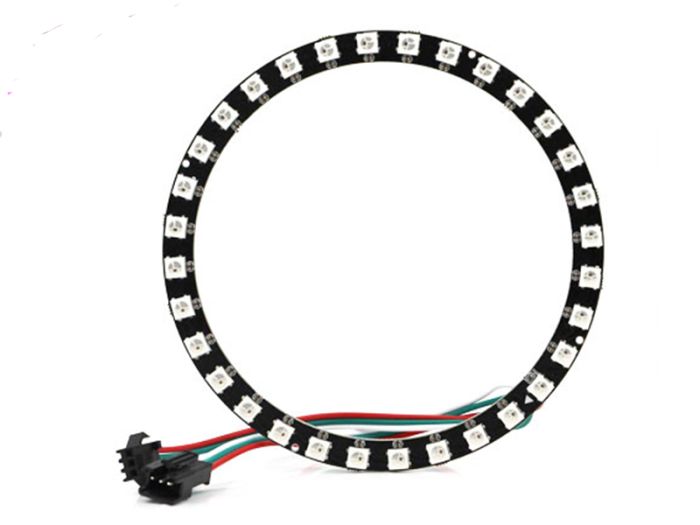

32 ultra bright smart LED NeoPixels are arranged in a circle with 112mm (4.4") outer diameter. The rings are 'chainable' - connect the output pin of one to the input pin of another. Use only one microcontroller pin to control as many as you can chain together! Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with 5VDC.
