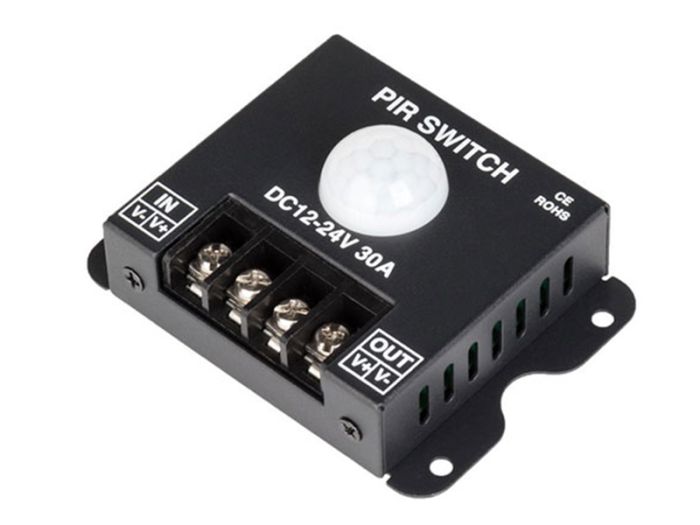

PIR Motion Sensor Switch - 12-24 VDC - 30 Amps

Special Price $12.50 Regular Price $15.00
In stock
SKU
LN00377
  • Buy 5 for $10.95 each and save 12%
  • Buy 10 for $9.85 each and save 21%
  • Buy 30 for $9.55 each and save 24%

Amps: 30A
Amps Per Channel: 30 Amps/CH
Channels: 1 Channel
Connection Type: Screw Terminals
Input Voltage DC: 12 ~ 24 VDC
IP Rating: Non-Waterproof
Special Features: Motion Sensor
Standards And Certifications: RoHS Compliant
Volts: 12-24 VDC
Package Weight: 4.7oz (0.13kg)
Package Dimensions: 3.5" (9cm) x 2.5" (6cm) x 1.5" (4cm)

This PIR motion sensor automatically powers on connected 12 VDC or 24 VDC LED lights when human motion is detected. The sensors will power on lights at night or during the day, and an adjustable dial allows your lights to remain on for up to 2 minutes (full clockwise turn to 10 equals 2 minutes, and a full counterclockwise turn to 1 equals 45 seconds). The single-channel sensor has a 30-Amp maximum load and operates within a 12-24 VDC range. Price for each.

Features:
* Adopts infrared detection way to control the load switch.
* Supply Voltage: DC12-24V; Max Load Current: 30A.
* PIR switch provides 60s~150s OFF delay timing function.
* Motion-activated lighting, low power consumption.
* Effective induction range of 2m; easy to install and convinent to use
