RDM-AMP-16E Neutrik 5 Pin XLR DMX RDM Compatible Signal Amplifier

Name: RDM-AMP-16E Neutrik 5 Pin XLR DMX RDM Compatible Signal Amplifier
SKU: LN00242
Price: 352.5 USD
Availability: InStock

Be the first to review this product

Special Price $352.50 Regular Price $380.00

In stock

SKU

LN00242

Buy 5 for $334.50 each and save 5%
Buy 10 for $299.50 each and save 15%
Buy 30 for $293.50 each and save 17%

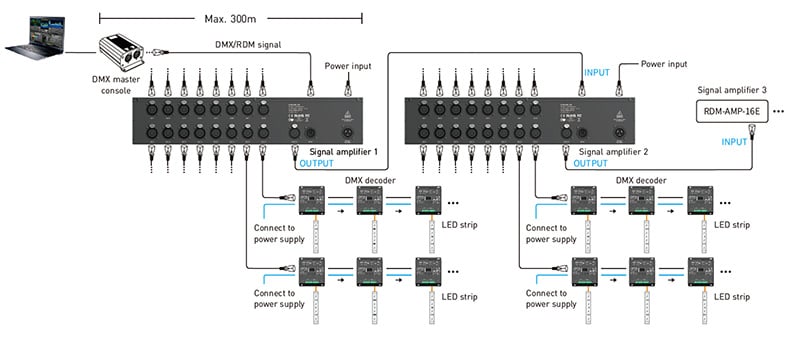

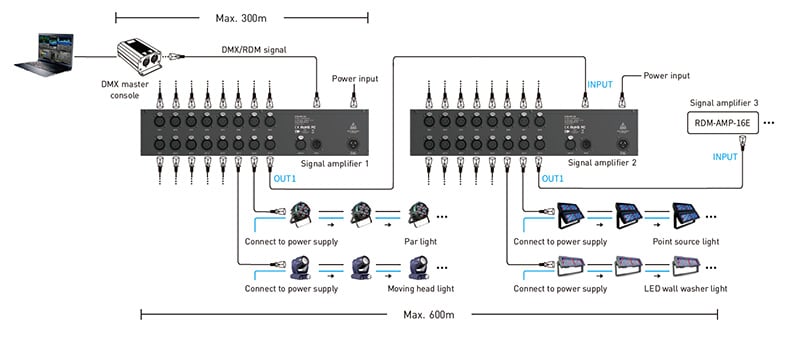

The RDM-AMP-16E is a DMX/RDM signal amplifier designed to extend the capabilities of DMX/RDM lighting control systems. This Neutrik 5-pin XLR signal amplifier is equipped with a relay function to amplify weak DMX/RDM signals, thereby extending the signal transmission distance, and includes a BYPASS function to further increase the number of DMX devices that can be connected.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

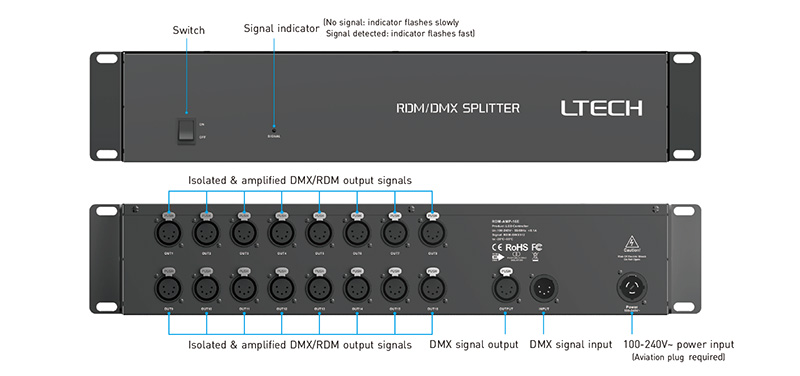

Suitable for a wide range of lighting applications including TV broadcast, stage, and entertainment venue lighting, the low distortion signal amplifier provides independent photoelectric isolation between inputs and outputs, increasing the overall safety and reliability of the lighting control system. Equipped with a signal indicator switch that flashes slowly when no signal is detected and quickly when a signal is present, the isolated signal amplifier automatically detects DMX/RDM signals and utilizes Neutrik 5-pin XLR connectors for safe and reliable connections.

Product Specification

Product model: RDM-AMP-16E
Input voltage: 100-240V~, 50/60Hz
Input signal: 1CH DMX/RDM signal input (photoelectric isolation>3KV)
Output signal: 16CH DMX/RDM signal outputs (photoelectric isolation>3KV) 1CH OUTPUT (BYPASS)
Input port: 5-pin XLR×1
Output port: 5-pin XLR×16
Working temperature: -20°C~55°C

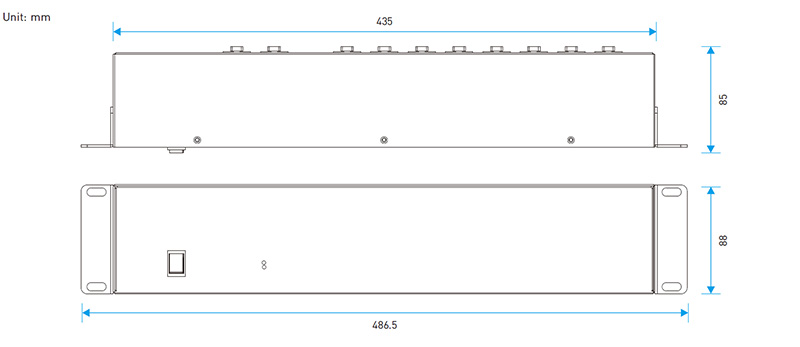

Dimensions: 486.5×88×85mm(L×W×H)
Net weight: 1922g
