RDM-AMP-4E DMX 5 Pin XLR Low Distortion Isolated Signal Amplifier

Name: RDM-AMP-4E DMX 5 Pin XLR Low Distortion Isolated Signal Amplifier
SKU: LN00061
Price: 181.5 USD
Availability: InStock
Rating: 100 (1 reviews)

Rating:

100 % of 100

1 Review Add Your Review

Special Price $181.50 Regular Price $200.00

In stock

SKU

LN00061

Buy 5 for $172.50 each and save 5%
Buy 10 for $159.50 each and save 12%
Buy 30 for $150.50 each and save 17%

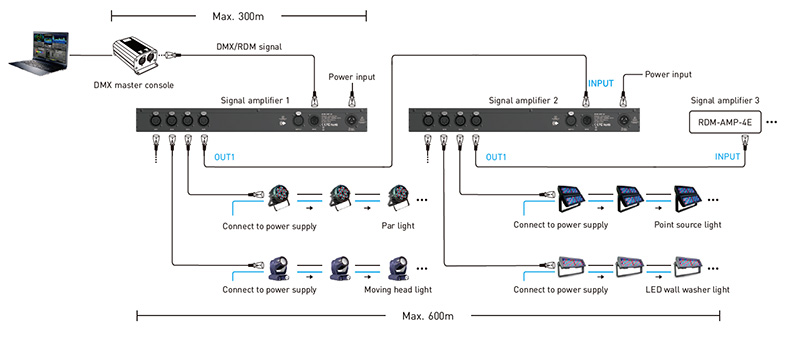

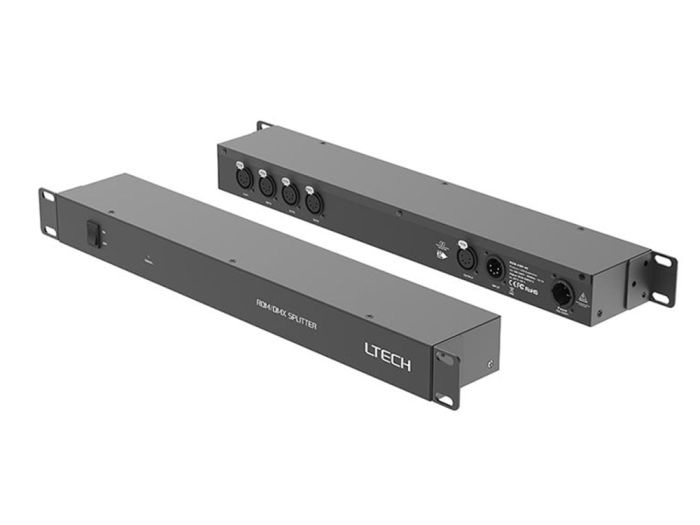

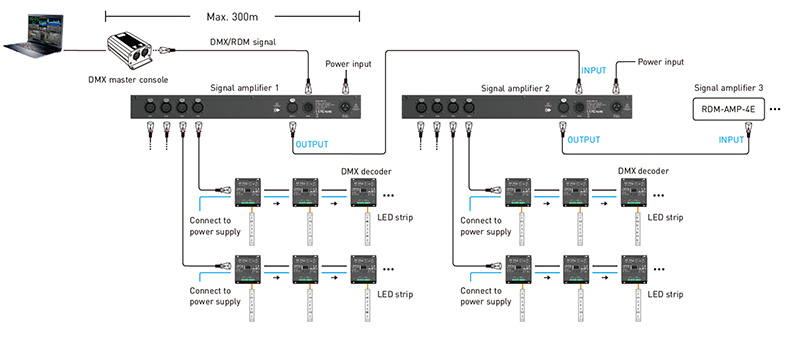

The RDM-AMP-4E is a DMX/RDM signal amplifier designed to enhance and extend DMX/RDM lighting control systems. This compact, isolated signal amplifier has a 1U rack-mountable form factor, making it ready for out-of-the-rack use. Featuring photoelectric isolation for increased safety and reliability in lighting control systems, the DMX/RDM Signal Amplifier provides a single channel input with four channel outputs, enabling amplification of weak DMX/RDM signals and extending the signal transmission distance, thus increasing the number of DMX devices that can be connected.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Suitable for a variety of lighting applications, this intelligent 5-pin signal amplifier offers a BYPASS function to increase the number of DMX devices in a setup and automatically recognizes DMX/RDM signals. Equipped with Neutrik 5-pin XLR connectors for safe and reliable connections, the efficient DMX signal amplifier features independent optical isolation between inputs and outputs, with an optical isolation level of more than 3kV.

Product Specification

Product model: RDM-AMP-4E
Input voltage: 100-240V~, 50/60Hz
Input signal: 1CH DMX/RDM signal input (photoelectric isolation>3KV)
Output signal: 4CH DMX/RDM signal input (photoelectric isolation>3KV) 1CH OUTPUT (BYPASS)

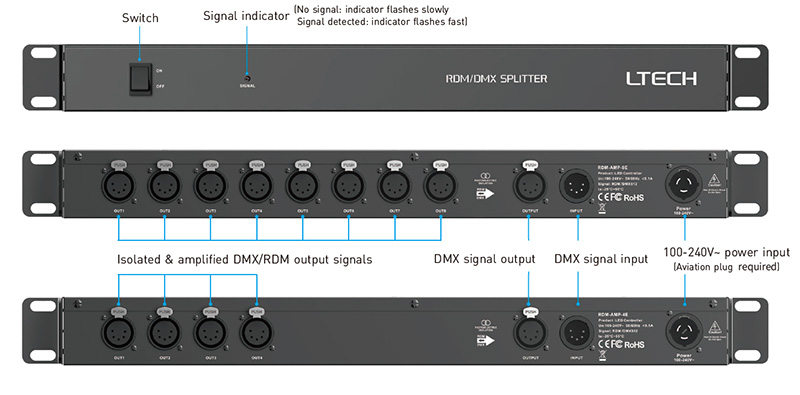

Input port: 5-pin XLR×1
Output port: 5-pin XLR×4
Working temperature: -20°C~55°C

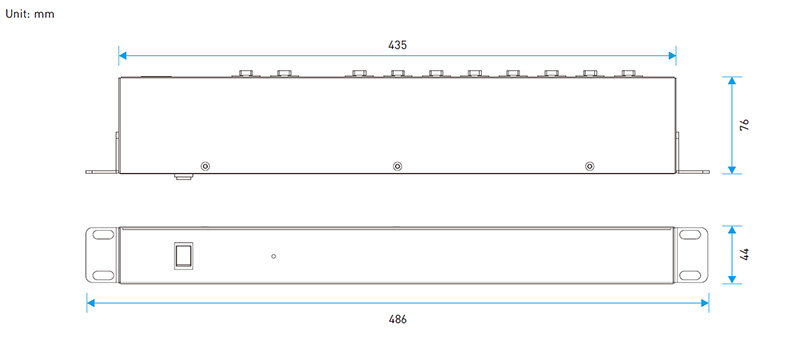

Dimensions: 486×76×44mm(L×W×H)
Net weight: 1150g
