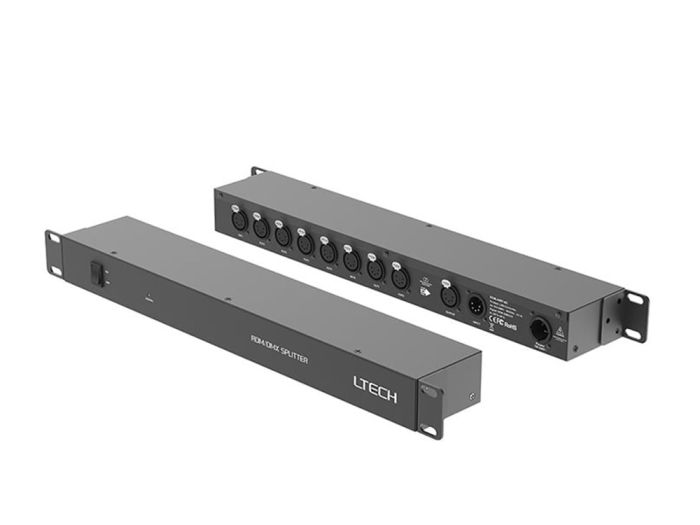

RDM-AMP-8E DMX RDM Neutrik 5 Pin XLR Portable Signal Amplifier
- Buy 5 for $221.50 each and save 5%
- Buy 10 for $198.50 each and save 15%
- Buy 30 for $194.50 each and save 17%
The RDM-AMP-8E is a DMX/RDM signal amplifier meticulously engineered to enhance and extend the capabilities of DMX/RDM lighting control systems. Featuring a single input channel with eight output channels, this 1U rack-mountable amplifier incorporates photoelectric isolation between inputs and outputs, thereby ensuring enhanced security and reliability for the lighting control system.
The Neutrik 5-pin XLR signal amplifier is equipped with a relay function that amplifies weak DMX/RDM signals, effectively extending the transmission distance while also including a BYPASS function to further augment the number of connectable DMX devices.
This DMX/RDM signal amplifier is designed to operate across an extensive temperature range from -20°C to 55°C, making it suitable for diverse lighting applications such as television broadcasting, stage performances, and entertainment venue illumination.
Product Specification
Product model: RDM-AMP-8E
Input voltage: 100-240V~, 50/60Hz
Input signal: 1CH DMX/RDM signal input (photoelectric isolation>3KV)
Output signal: 8CH DMX/RDM signal input (photoelectric isolation>3KV) 1CH OUTPUT (BYPASS)
Input port: 5-pin XLR×1
Output port: 5-pin XLR×8
Working temperature: -20°C~55°C
Dimensions: 486×76×44mm(L×W×H)
Net weight: 1150g

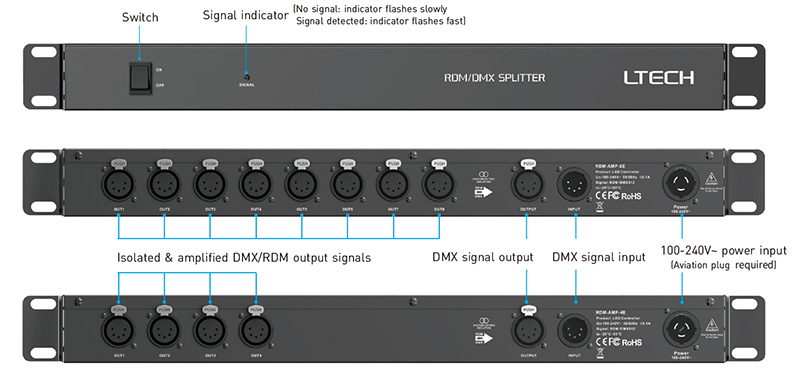

Overview

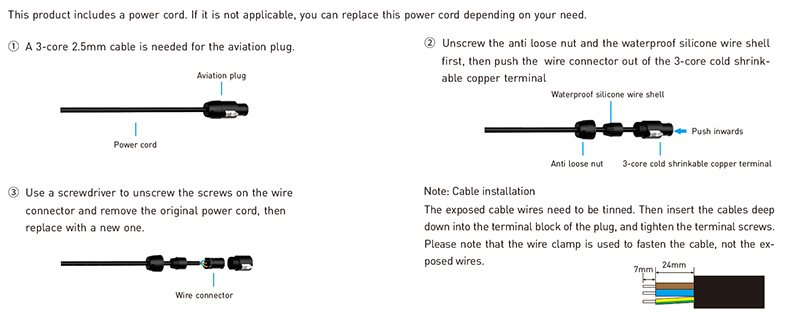

Power cord replacement diagram

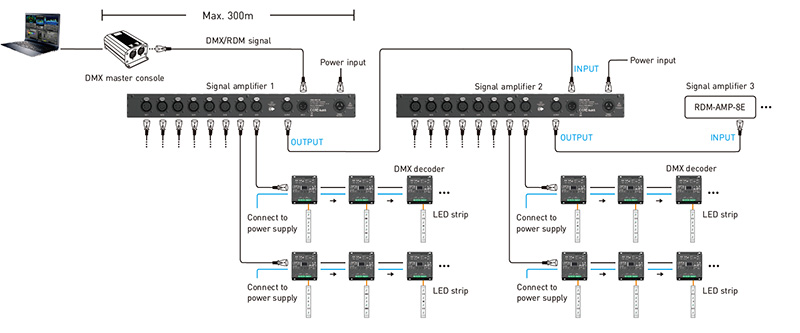

Connection diagram of relay mode

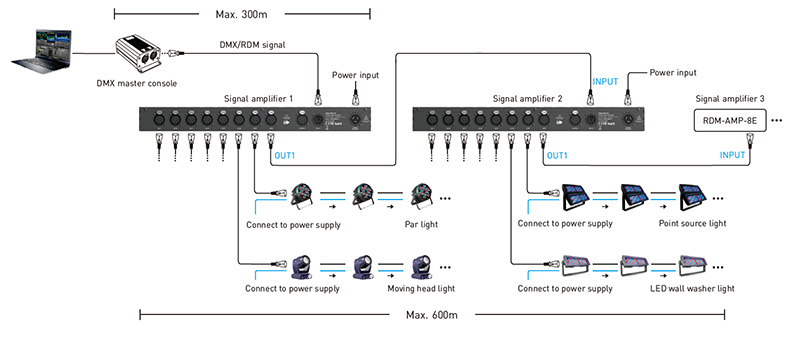

Connection diagram of extended mode

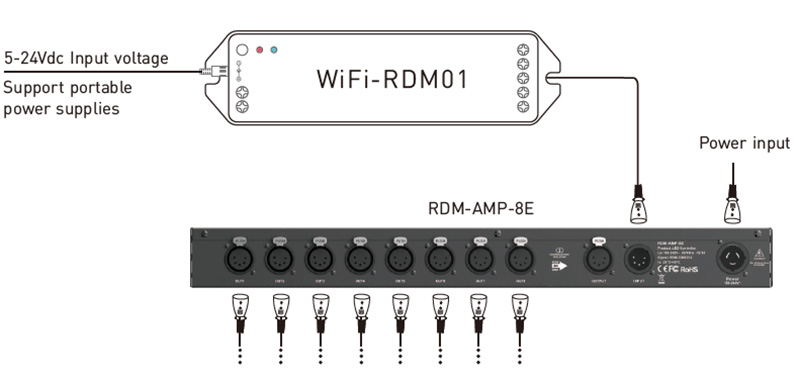

Work with a RDM Programmer
-
