WP-804 Waterproof IP67 4CH DMX RDM LED Decoder
- Buy 5 for $54.50 each and save 7%
- Buy 10 for $50.50 each and save 14%
- Buy 30 for $48.50 each and save 17%
WP-804 is a waterproof DMX decoder with an IP67 rating, suitable for outdoor and damp environments. WP-804 waterproof led decoder uses the RDM protocol and supports DMX512/RDM signal bi-directional communication. The RDM protocol enables remote management such as reading/writing DMX address (For RDM functions the DMX master must be RDM compliant).
WP-804 dmx512 led decoder has 4 channels output. 5A output for each channel. It can be used to control DC12-24V DIM, CCT, RGB, and RGBW constant voltage led lights and achieve 0-100% dimming or various lighting effects. It can be operated in DMX mode or in customized mode. Easy to set address via digital display and buttons.
Product Specifications
Product Name: Waterproof IP67 DMX LED Decoder
Input Signal: DMX512, RDM
Input Voltage: DC12-24V
Intput Current: Max. 20A
Output Current: Max 5A/CH, Max 20A/4CH
Output Power: (0~60W...120W)W/CH, Max.480W (4CH)
Output Type: Constant Voltage
Working Temperature: -20~50°C
Protection: Short circuit, over current, over temperature, auto recovery
Gross weight(G.W): 690g

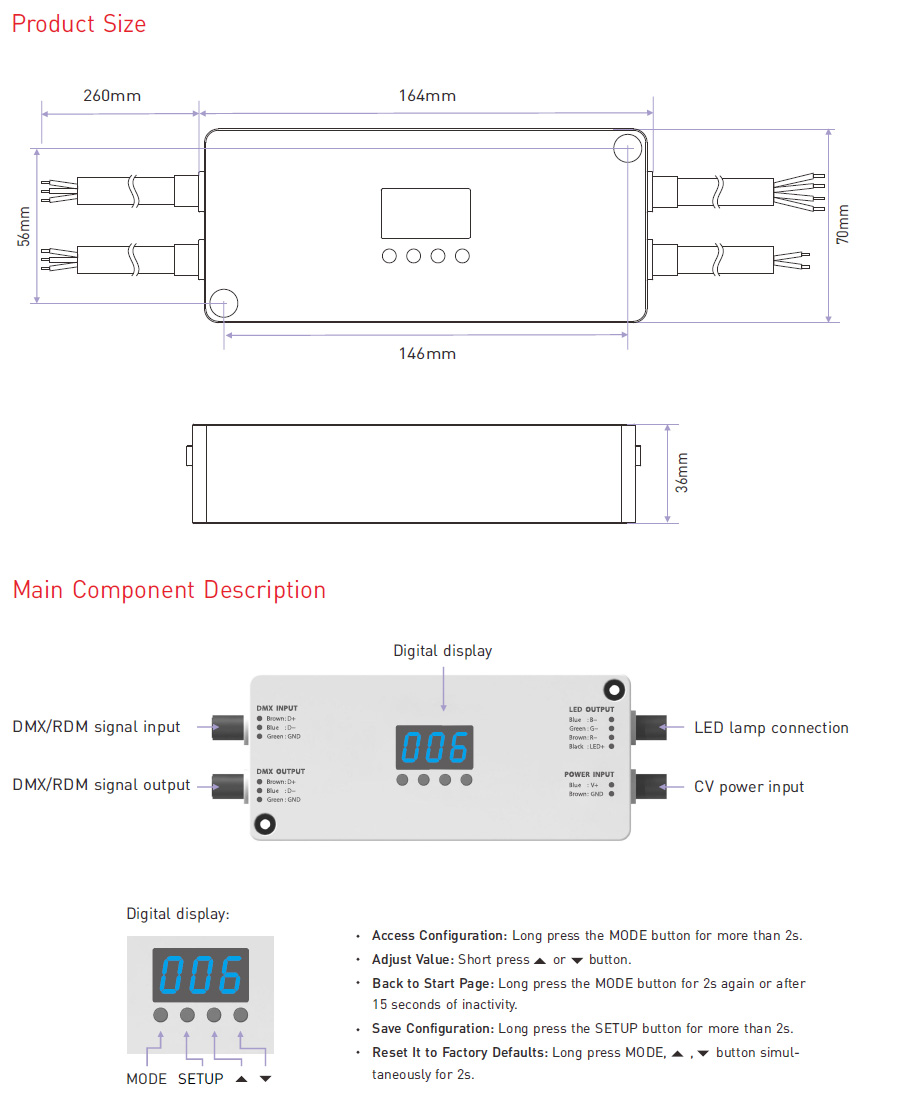

Dimensions: 164×70×36mm(L×W×H)
-
