5 Amp 4 Channel LED DMX 512 CV Decoder
Input signal: DMX512
Input power: DC5V~DC24V
Max load current: 5A ×4CH Max 20A
Max output power: 100W/240W/480W(5V/12V/24V)
Gray scale level: 256 levels/CH
DMX512 socket: XLR-3, RJ45, Green terminal
Dimming range: 0~100%
Working temperature: -30℃~65℃
Dimension: L163×W78×H40mm
Weight (G.W): 430g

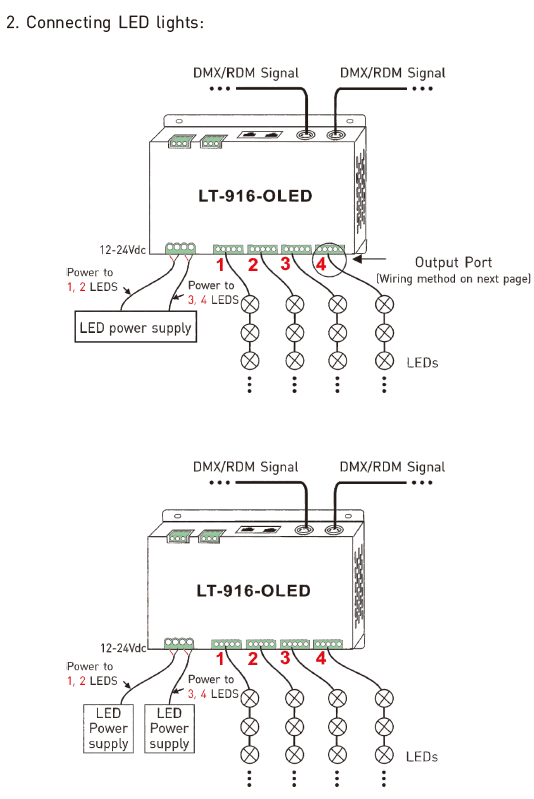

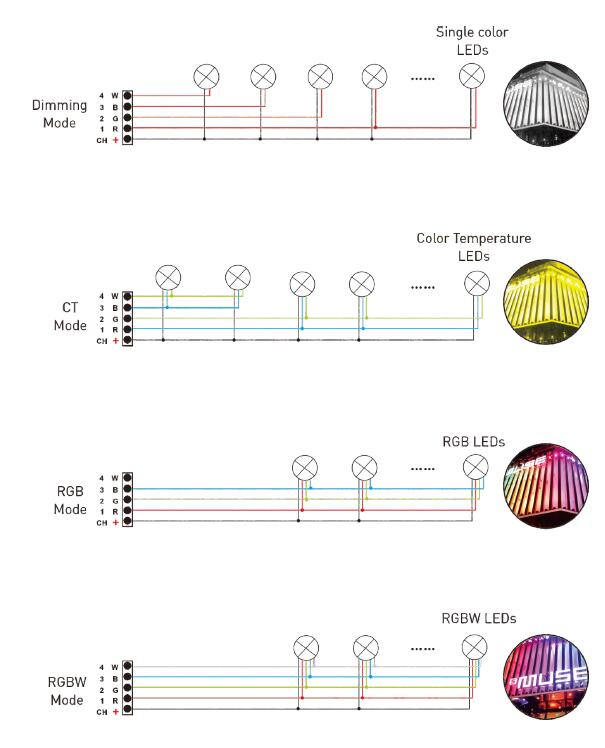

4 Channel DMX Controller/Decoder can control up to 4 different 12VDC LED products or any RGB LED Light Bar or Strip. Controller can run in stand alone mode using Address code switches or under DMX-512 digital control signals using XLR or RJ45 DMX-512 Input/Output interfaces. DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 16-bit gray scale output per channel. Maximum load is 5 Amps per channel - 20 Amps total. Includes male and female 3-pin XLR connectors.
Decoder address setting
1. DMX initial address setting
FUN at “OFF” is DMX512 signal mode FUN at “ON” is auto testing mode
Example 1: Set initial address to 37 Set the 1st, 3rd, 6th, bit of the DIP switch downward to “1”, the rest to “0”(below picture), the summation from 1 to 9 is 1+4+ 32, so the DMX512 initial address code is 37.
Example 2: Set initial address to 328Set the 4th, 7th, 9th, bit of the DIP switch downward to “1”, the rest to “0” (as below picture), the summation from 1 to 9 is 8+64+ 256, so the DMX512 original address code is 328.
2. Testing function

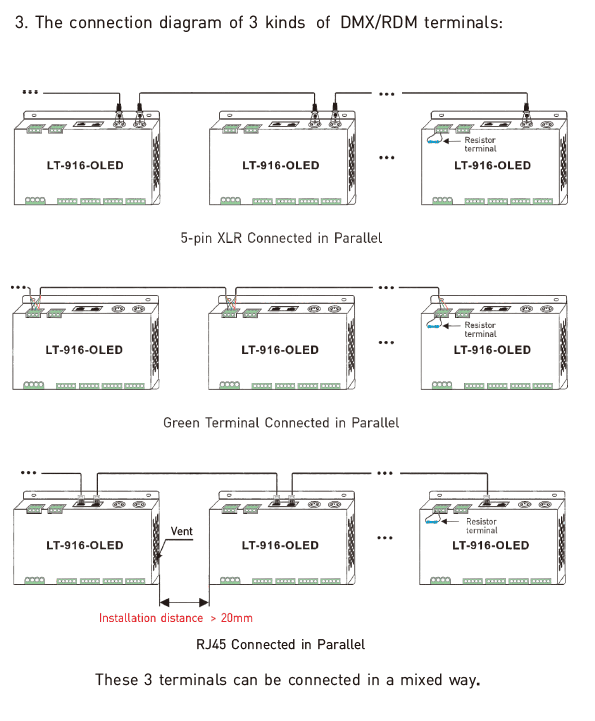

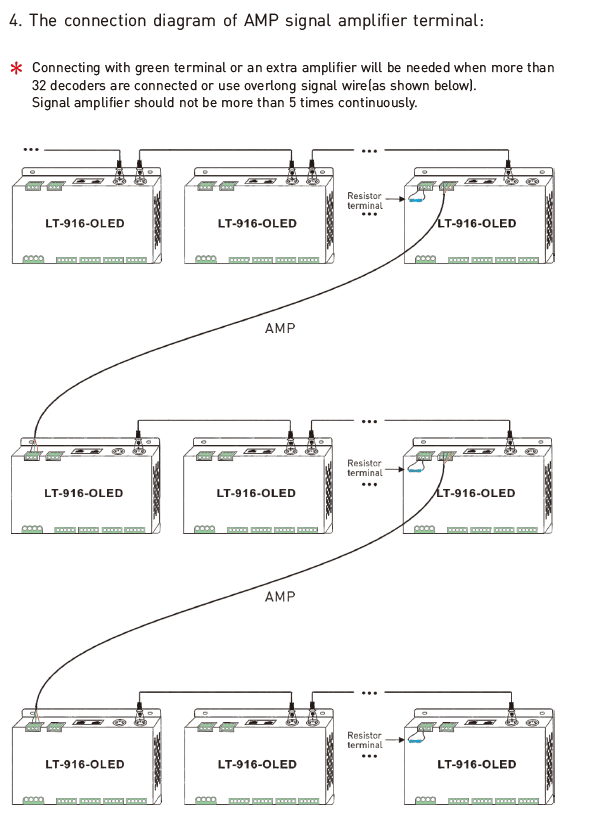

Conjunction connection
Note: According to DMX512 protocol, in order to ensure a steady DMX data transmission, you should weld a metalster(Metal Thin Film resistor, 90-120Ω1/4W)at the end of each layout of DMX data cable(between Foot 2 and Foot 3, Data + and Data -), please also refer to your DMX console manual to select a correct resistor .
