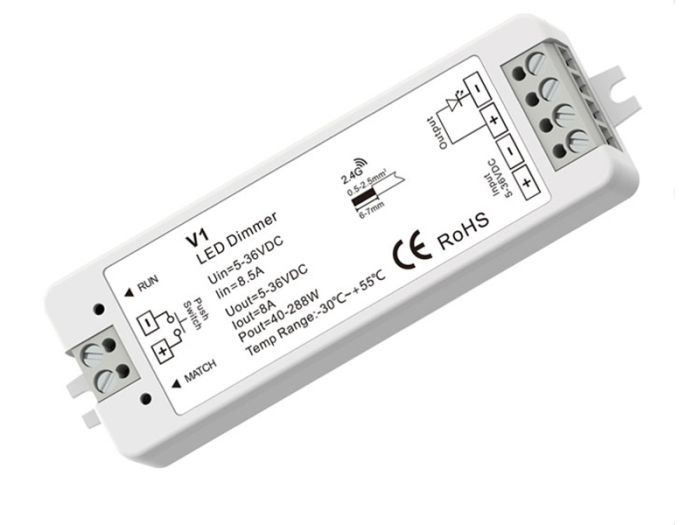

Wireless LED 1 Channel 8A LED Dimmer Controller
- Buy 5 for $25.55 each and save 13%
- Buy 10 for $23.55 each and save 20%
- Buy 30 for $22.55 each and save 24%
Input: DC 5V- 36V
Working Temperature: -20~+50 °C (-4~+122 °F)
Max load current: 8A/Channel ( 1 Channel)
Max Power Output: 5V Max 40W, 12V Max 96W, 24V Max 192W, 36V Max 288W
Output gray: 256 levels
Frequency of RF remote control: 2.4G MHz
RF Remote Distance: 30M
Product size: (Approx) L97x W33x H18mm
Standards And Certifications: CE, FCC, RoHS Compliant
Designed for use within the EZ Dimmer series, this wireless 1 channel LED dimmer controller operates within a 5-36 VDC while receiving RF signals from a compatible wireless LED dimmer wall switch. The LED receiver has a maximum load capacity of 8 amps and has spring terminal connectors for in and out power connections.
* RF dimmer match with a variety of dimming remote, realize functions of switch and dimming.
* Smooth dimming and switch without any flickering
* Adopt 2.4GHz wireless technology, remote distance up to 30m, one RF dimmer can accept up to 10 remote control.
* Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver
* Within 15m, so the remote control distance can be beyond 100m.
* Can connect with external push switch to achieve on/off and dimming function.
* Work with power repeater to expand output unlimitedly.
* Mini-style RF dimmer, one channel constant voltage output.
* Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller
